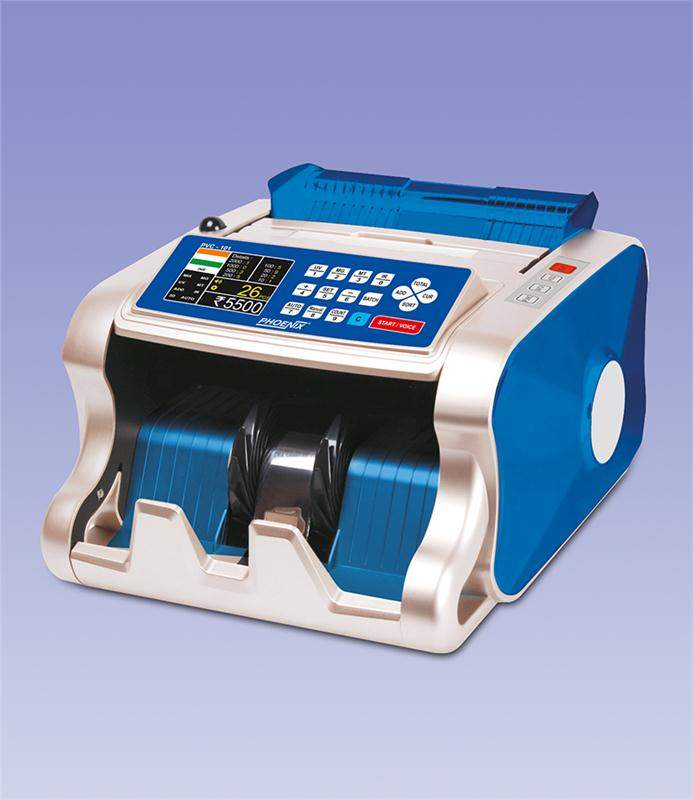

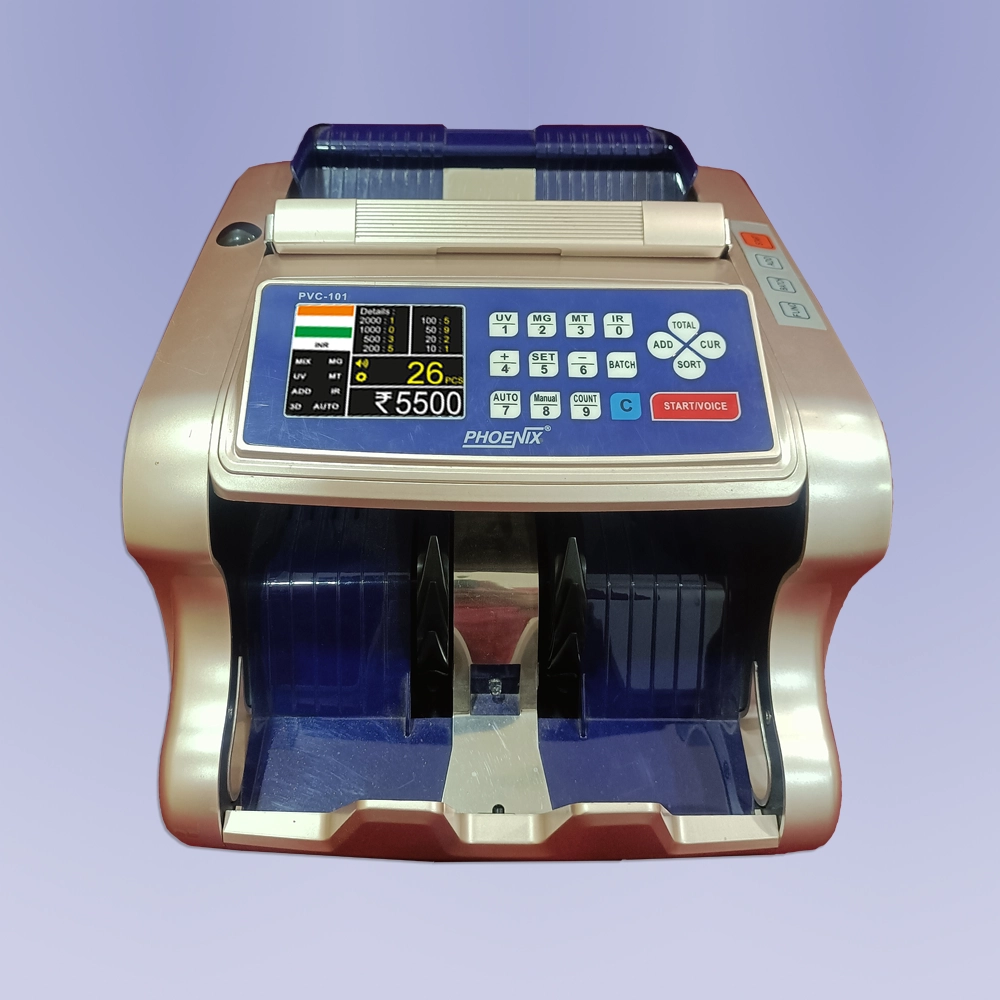

Mixed Currency Counting Machine

PVC-101

It shows denomination wise counted pieces and total value.
Automatically detects faulty/counterfeit notes using UV, MG, IR, 3D and Colour detection while counting.

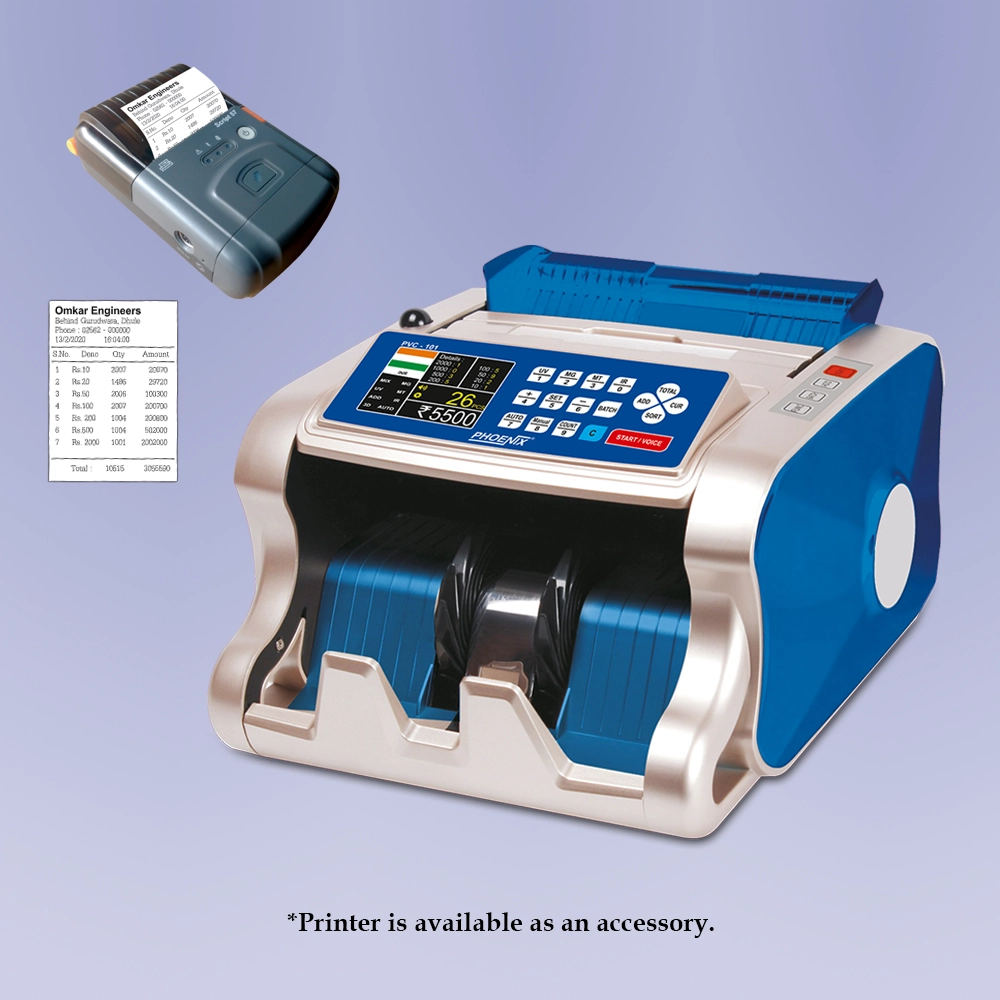

Phoenix value counting machine can be connected to a thermal printer and you get detailed report of counted notes. The report shows denomination-wise counted pieces and total value. The report also prints the current date and time. Additionally, you can also print your shop-name as the header of the printed receipt.
LCD display.
Sturdy and heavy design combined with modern electronic technology ensures accurate counting and detection of faulty/counterfeit notes.

Specifications

Accessories

Applications

Videos

Specifications

Accessories

Applications

Videos

1	Counting speed	>= 1000Pcs/min.
2	Display	Colour TFT display. Comes with LCD extra display that shows counted pieces, amount (value) and counterfeit parameters. Display flashes red light when a counterfeit note is observed.
3	Keyboard	21-key keyboard.
4	Counterfeit detection sensors	UV, MG, IR, 3D and colour detection.
5	Modes of operation	MIX Mode, SORT Mode, DETECT Mode, COUNT Mode, BATCH Mode, ADD Mode.
6	Special features	Denomination sort function. Automatic start, stop and clear. Voice and self-examination functions. Software can be updated through RS-232 port. Specially designed and developed for Indian currency.
7	Extra features	Phoenix value counting machine can be connected to a thermal printer and you get detailed report of counted notes.The report shows denomination-wise counted pieces and total value.The report also prints the current date and time. Additionally, you can also print your shop-name as the header of the printed receipt.
8	Hopper capacity	300 pcs.
9	Stacker capacity	300 pcs.
10	Size of countable notes	Width – 50 mm to 110 mm. Length – 90 mm to 190 mm.
11	Power Supply	230V AC +/- 10%, 50 Hz.
12	Dimensions	320mm(L) x 250(W)mm x 180mm(H)
13	Net weight	6.4 kg
