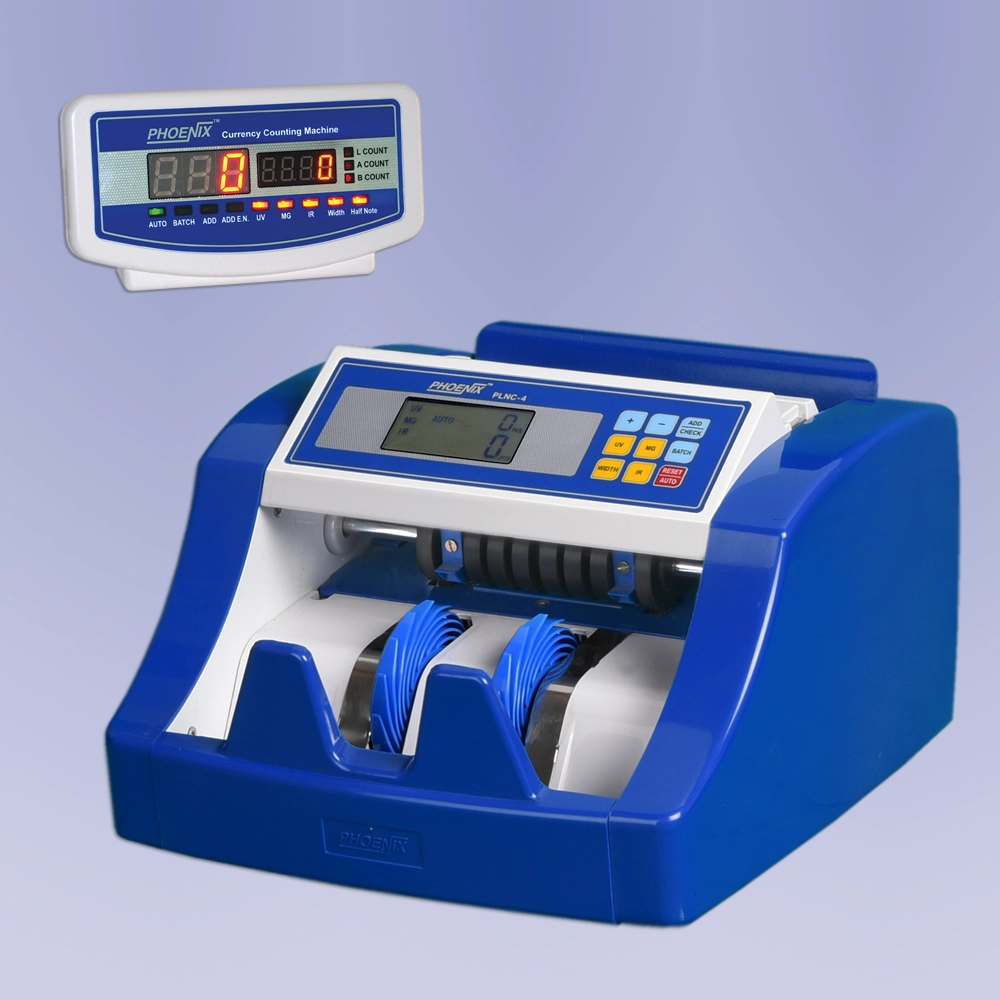

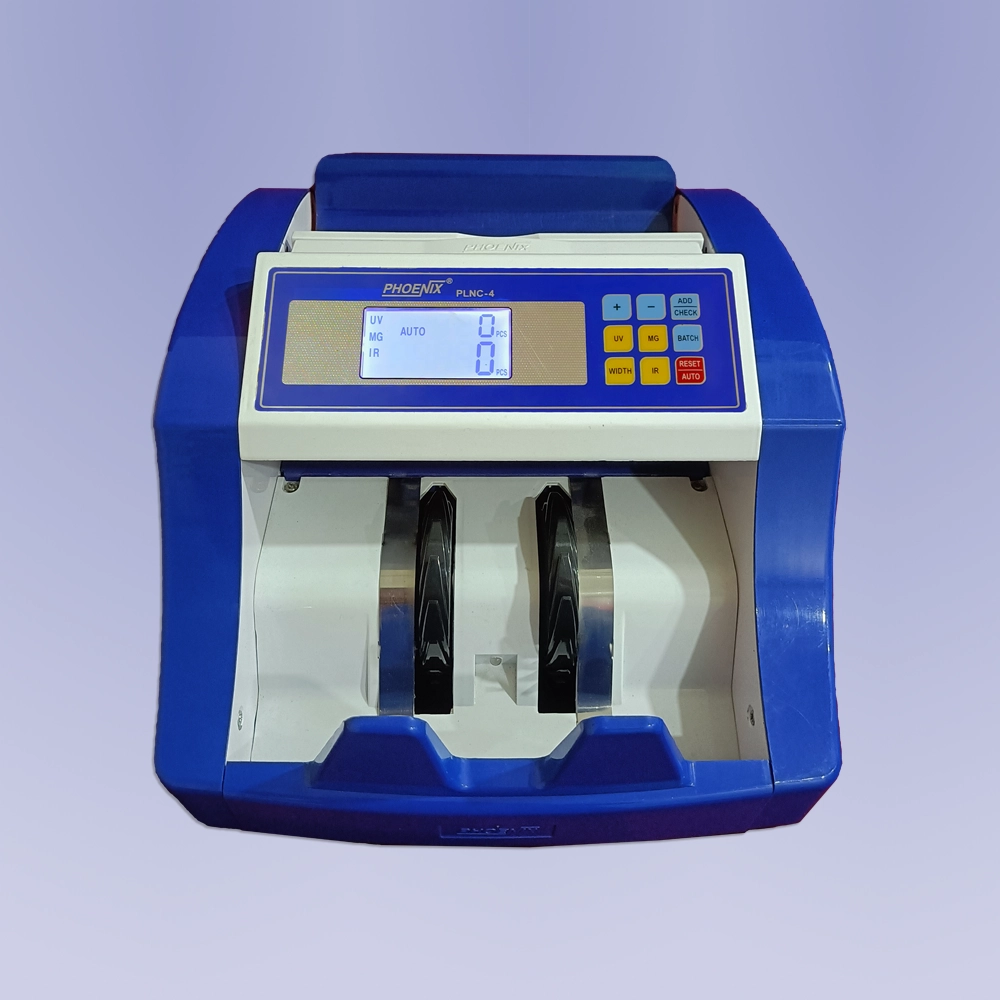

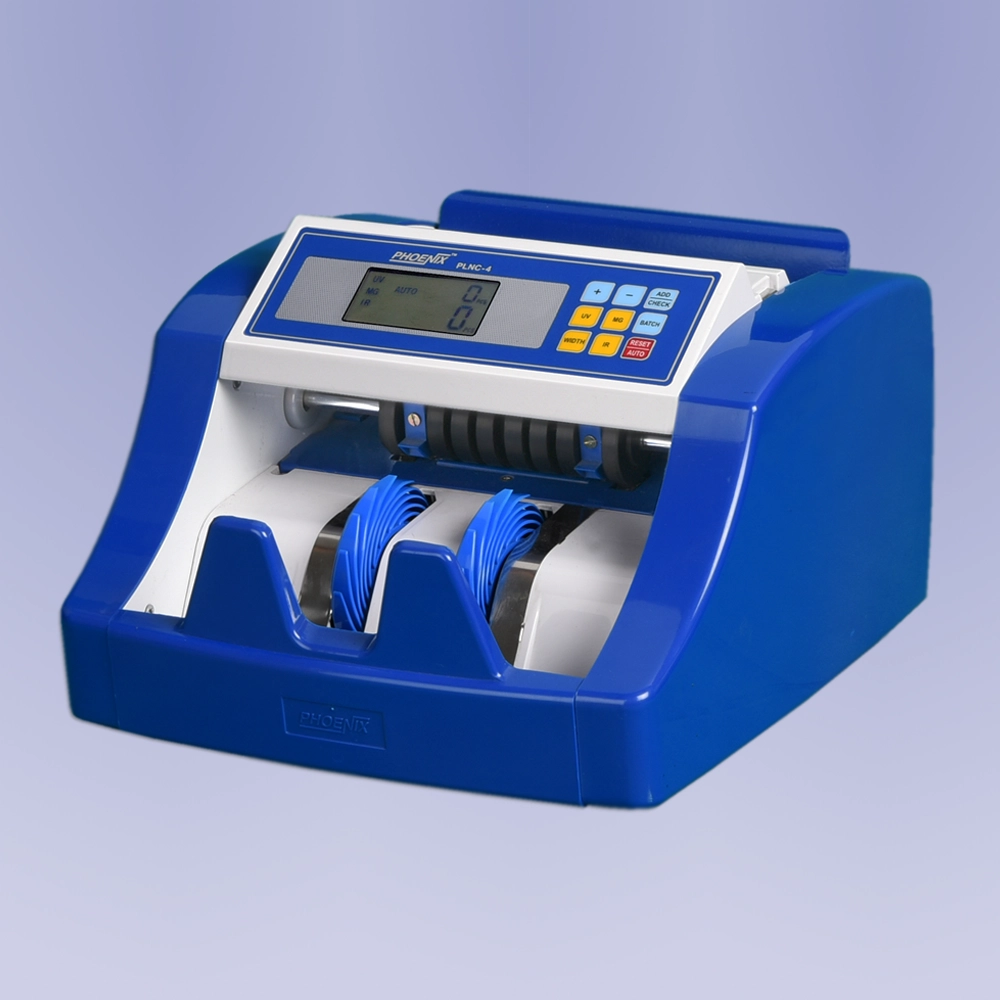

PLNC-4

Cash Counting Machine

Single denomination loose note counting machine.
Automatically detects faulty/counterfeit notes using ultraviolet, magnetic and infrared sensors. Width variation of notes is detected by optical sensor. Capable of Double Note detection.
LCD display.
Extra LED type display containing all the features of the main display panel.
Sturdy and heavy design combined with modern electronic technology ensures accurate counting and detection of faulty/counterfeit notes.
Indigenous design and manufactured in India.

Specifications

Accessories

Applications

Videos

Specifications

Accessories

Applications

Videos

1	Counting speed	>= 1000Pcs/min.
2	Display	Clear and crisp LCD display with backlight and clear visibility from every angle. Extra LED type display containing all the features of the main display panel.
3	Keyboard	9-key keyboard.
4	Counterfeit detection sensors	UV, MG, IR, and optical sensors.
5	Modes of operation	Auto Start, Add Batch, Bundle Check.
6	Special features	Automatically detects faulty/counterfeit notes while counting. Width variation of notes is detected by optical sensor. Capable of Double Note detection. Sensitivity of Ultraviolet, Magnetic, Infra-red, and Optical sensors are settable. It detects various parameters for authenticity of notes and indicates various errors observed. Mode to add/discard erroneous note while counting. Machine stops working beyond specific low/high voltages, eliminating counting errors and probable damages. Thermal protection circuit for induction motor (motor heating protection). If an unknown object is sensed in the hopper, the machine automatically stops working. Suitable for Indian currency notes.
7	Hopper capacity	200 pcs.
8	Stacker capacity	200 pcs.
9	Power Supply	230 V AC +/-10%, 50Hz +/-2%.
10	Dimensions	256mm(L) x 304(W)mm x 178mm(H)
11	Net weight	5.4 kg
