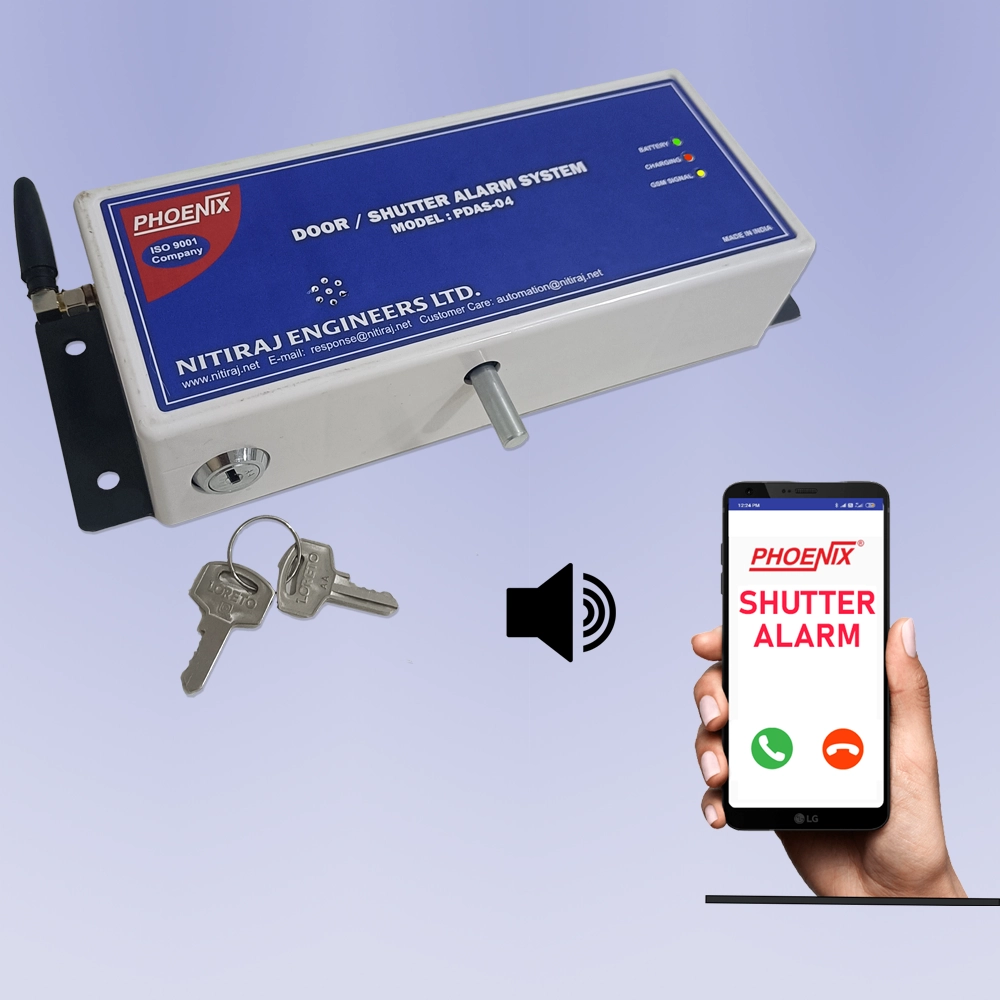

GSM Shutter Alarm

PDAS-04

PDAS-04 website

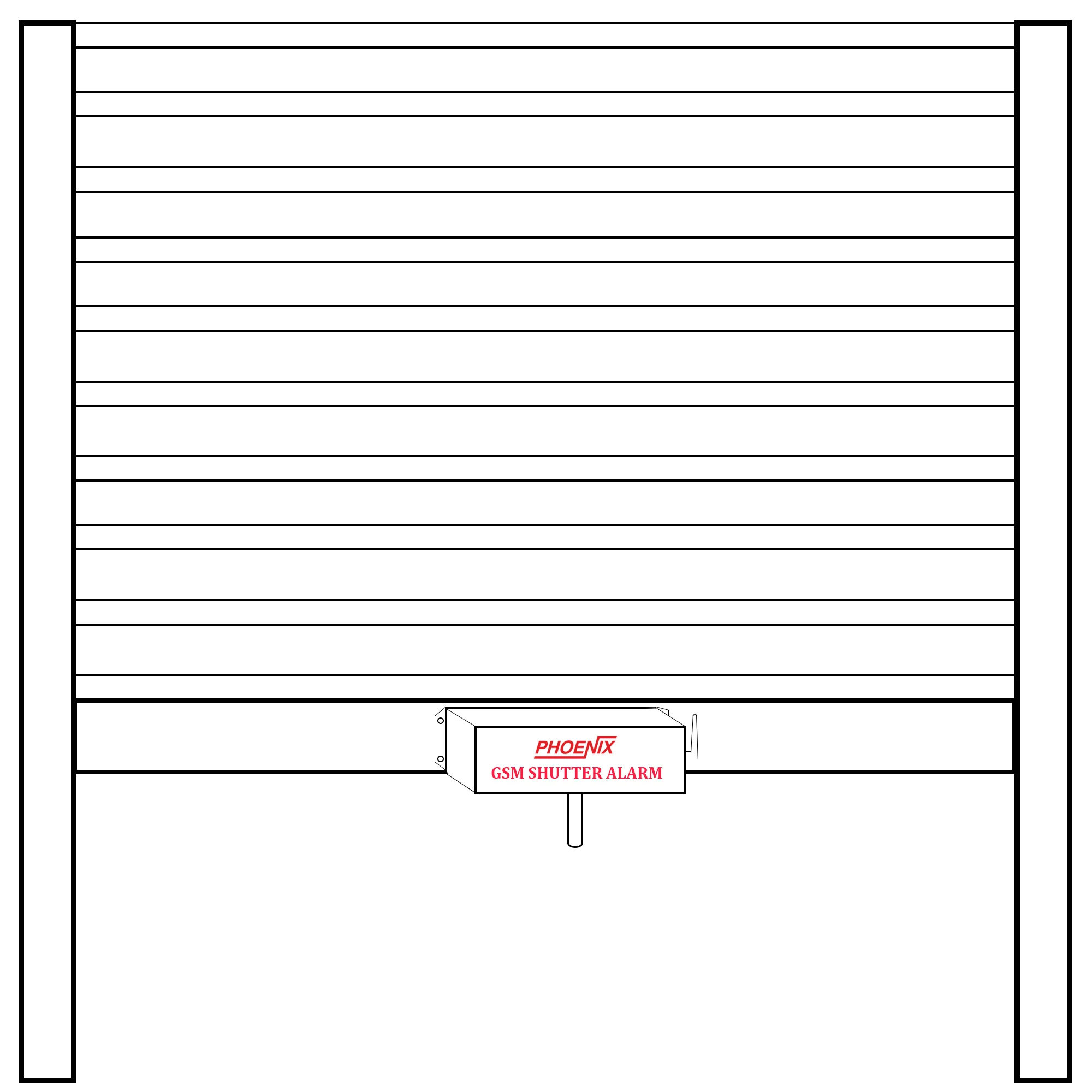

GSM Shutter Alarm Product 2

Previous

Next

GSM Shutter Alarm

PDAS-04

Salient Features

This alarm system gives out a loud siren and it also sends SMS and calls to 5 registered mobile numbers, on intrusion.
It consists of an alarm body (with spring type rod sensor) to be installed on the shutter.
Installation process is simple with only the alarm body to be fit on the shutter using 4 nut-bolts.
Battery operated system, required no electric connection.
Works with all SIM cards, including 4G and Jio sim.
Made in India.

Specifications

Accessories

Applications

Videos

Specifications

1	System	It consists of an alarm body (with spring type rod sensor) to be installed on the shutter.
2	Working details	This alarm system gives out a loud siren and it also sends SMS and calls to 5 registered mobile numbers, on intrusion. User needs to insert a SIM card for using SMS and calling feature. On entering, if the alarm is not disabled within 15 seconds using its key, it gives out a loud siren, indicating intrusion. This 15-second delay is adjustable as per the user’s requirement. The siren can be turned off or disabled with its key, or by the registered mobile numbers.
3	Special features	User can also set the day and time period for the alarm system to be enabled automatically and regularly, by SMS. Other SMS setting includes registering mobile numbers, checking the battery, checking the SIM network range, enabling or disabling the alarm, setting the delay period for the alarm to start ringing after the shutter is opened. Piezo electric buzzer of 120 dB results in a loud siren. This system is easy to install as it has a spring rod-type sensor. The installation process is simple with only the alarm body to be fit on the shutter using 4 nut-bolts. It has LED indications for Low Battery, Battery Charging, and SIM range.
4	Hardware	Alarm body is made up of metal and is robust, sturdy, and secure.
5	Working voltage	Operates on a single in-built rechargeable Li-ion battery. It requires no electric connection. Battery charging wire is provided with the system, and a battery life of approximately 5 days is expected for the rechargeable battery.
6	Product dimensions	155(L) x 95(W) x 55(H) mm.

Accessories

Applications

Jewellery shops
Shops, godowns, warehouses
ATM / banks
Industries

Videos
