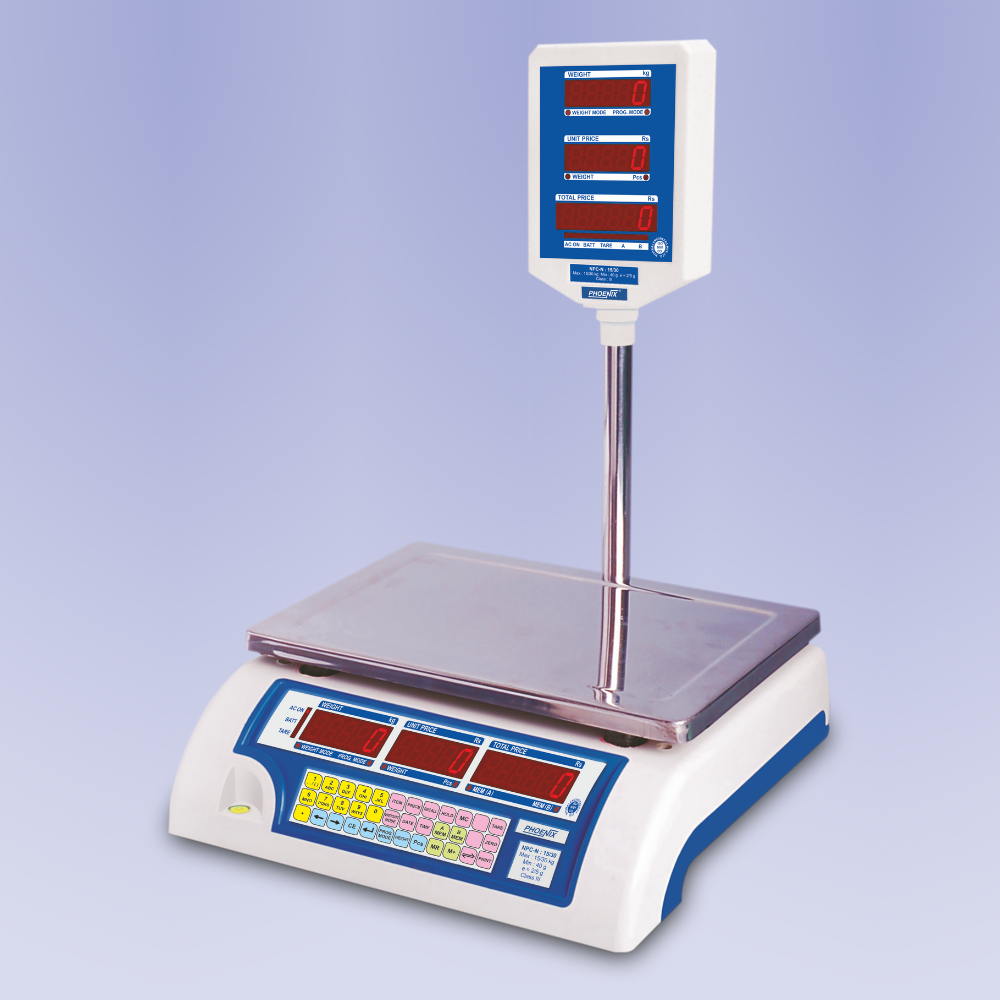

NPC-N Series

Price Computing and Bill Printing Weighing Scale

Loadcell based electronic weighing scale.
You can store data of 500 items in the machine, which includes item name, item code, unit price, expiry date, and unit (wt/qty). The machine automatically calculates the total amount based on these inputs.
Features like bill printing, barcode printing, transferring data to the computer, and accumulated commodity-wise record printing are offered.
16-digit red bright LED display and 36-key alphanumeric keyboard for easy UI.
Compatible with HDPOS Smart software.
Indigenously developed, designed, and manufactured in India.

Models	Capacity	Accuracy	Platter Size
NPC-3N	3 kg	0.5 g	350 X 246 mm
NPC-6N	6 kg	1.0 g	350 X 246 mm
NPC-15N	15 kg	2.0 g	350 X 246 mm
NPC-30N	30 kg	5.0 g	350 X 246 mm

*Multi-Interval instruments (Dual Accuracy Scales) are also available.

Specifications

Accessories

Applications

Videos

Specifications

Accessories

Applications

Videos

1	Weighing technology	Loadcell
2	Display	16-digit red bright LED display
3	Keyboard	36-key Alphanumeric feather-touch keyboard with audible indication during entry
4	Memory	Data of 500 items which includes machine, item name, item code, unit price, expiry date, and unit (wt/qty), can be stored in the machine. This data can be entered using the machine’s keyboard or can be downloaded from the computer.
5	Modes of printing	1. Print the bill directly from weighing scale. 2. Print Barcode of individual Item (Barcode will consist of Item No. & Weight). 3. Transfers the weight data constantly to the computer.
6	Advanced features	Computer/Printer Interface, USB for Computer Interface, Real-Time Clock are inbuilt.
7	Special features	1. Prepacked items can be added to the bill. 2. Name and address of the shop owner can be entered using the Alphanumeric keyboard or can be downloaded from the computer and the same can be printed on the bill. 3. Type of printer can be selected for Bill Printing Mode. 4. Accumulated commodity wise record can be printed. 5. ‘HOLD’ function for locking the display of weight. 6. Compatible with HDPOS Smart software.
8	Indications	A.C. On, Nett/Gross weight, Zero, Battery, Battery low.
9	Hardware	Sturdy ABS body with SS platter.
10	ADC	24 bit Σ – Δ ADC (High resolution).
11	Power requirement	AC supply : 230V +10%, -20%, 50 Hz ,±2%
12	Dimensions (mm)	343(L) x 358(w) x 102(H)[without tray], Tol: ± 10mm
