Analytical Weighing Balance
NLB Series

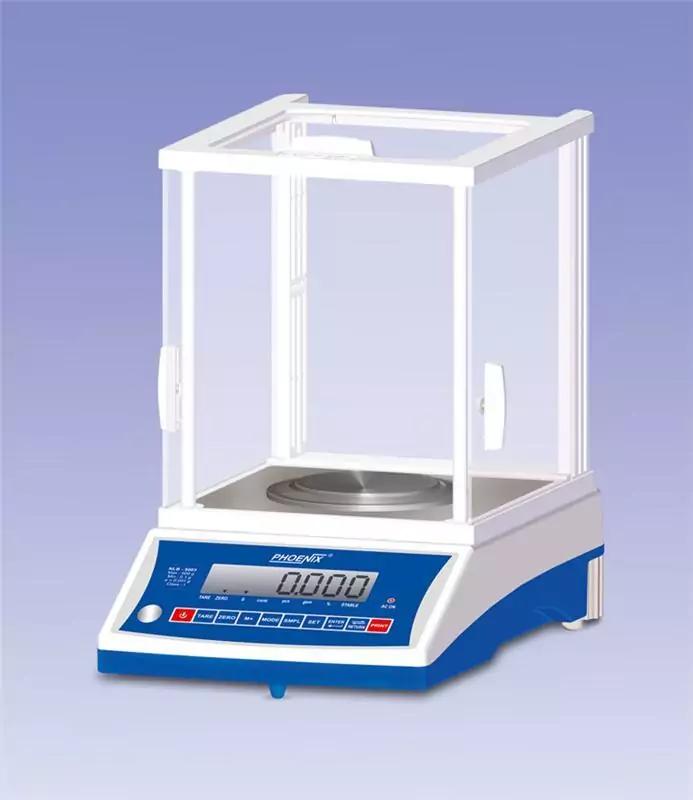

Analytical Weighing Balance
NLB Series
Salient Features
- Electromagnetic sensor-based analytical weighing balance.
- Very high-resolution technology.
- Excellent accuracy, stability and repeatability.
- Indigenously developed, designed and manufactured in India.
| Models | Capacity | Accuracy | Platter Size |
|---|---|---|---|
| NLB-604 | 60 g | 0.1 mg | 82 mm dia |
| NLB-1204 | 120 g | 0.1 mg | 82 mm dia |
| NLB-2003 | 200 g | 1 mg | 100 mm dia |
| NLB-3003 | 300 g | 1 mg | 100 mm dia |
| NLB-4003 | 400 g | 1 mg | 100 mm dia |
| NLB-5003 | 500 g | 1 mg | 100 mm dia |
| NLB-12002 | 1.2 kg | 10 mg | 160 mm dia |
| NLB-20002 | 2 kg | 10 mg | 160 mm dia |
| NLB-30002 | 3 kg | 10 mg | 160 mm dia |
Specifications
Accessories
Applications
Videos
Specifications
| 1 | Weighing technology | Electromagnetic sensor |
| 2 | Display | 7 Digit LCD Display with backlight |
| 3 | Keyboard | 10 key feather touch keyboard |
| 4 | Modes of operation | Gram, Carat, Counting, Percentage and GSM |
| 5 | Memory accumulation feature | Yes |
| 6 | Hardware | Sturdy aluminium die-casted body |
|
7 |
Power requirement | AC Supply : 230V +10%, -20%, 50 Hz ,±2% |
| 8 | Dimension (mm) | 354 (L) X 216 ( W) X 89 (H). Tol : ± 10 mm |
Accessories
- Windshield with toughened glass.
- Extra display with detachable cable at 3 meters.
- Computer/printer interface (RS-232 C).
- Thermal printer (with adaptor).
- Wireless RF display.
- USB host port to write data to pen drive.
- USB device port.
- RTC (Real Time Clock).
- Density Kit.
- Bluetooth with an Android app.
Applications
- Laboratories
- Chemical industries
- Pharmaceutical industries
- Jewellers
- Paper industry
