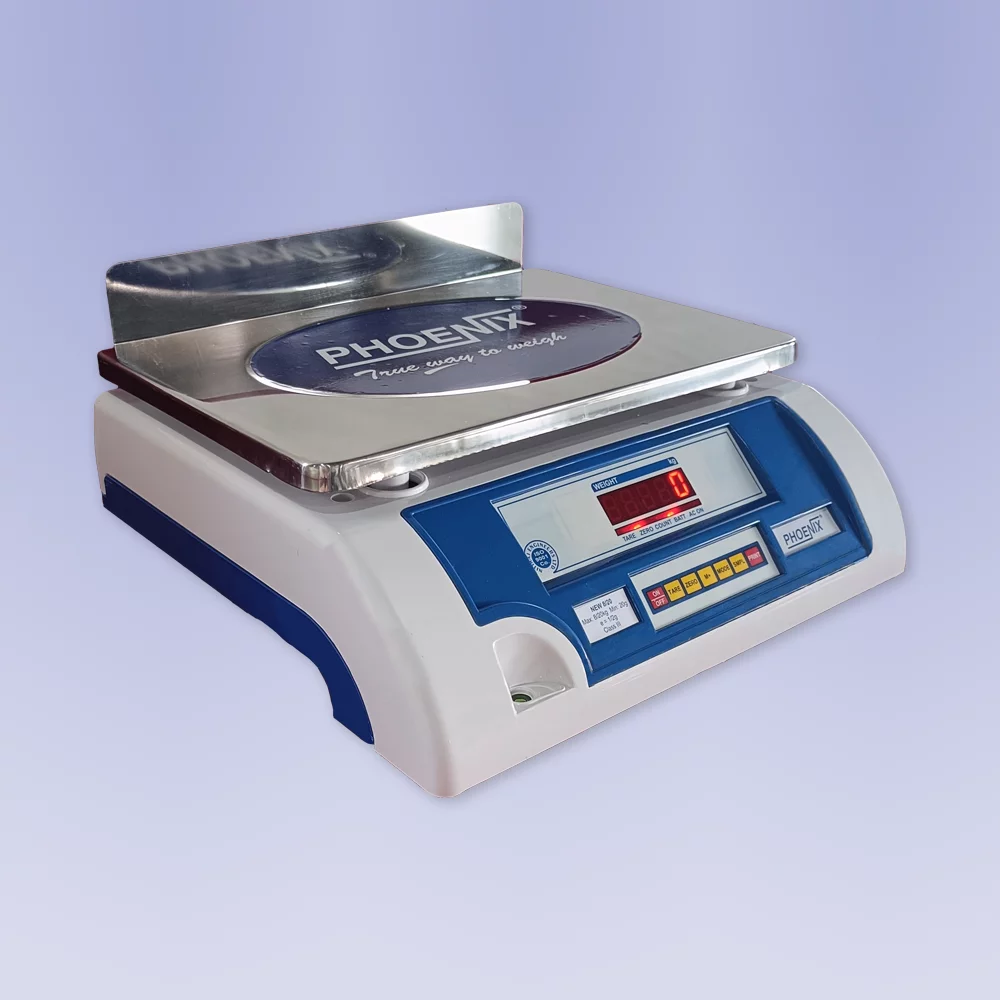

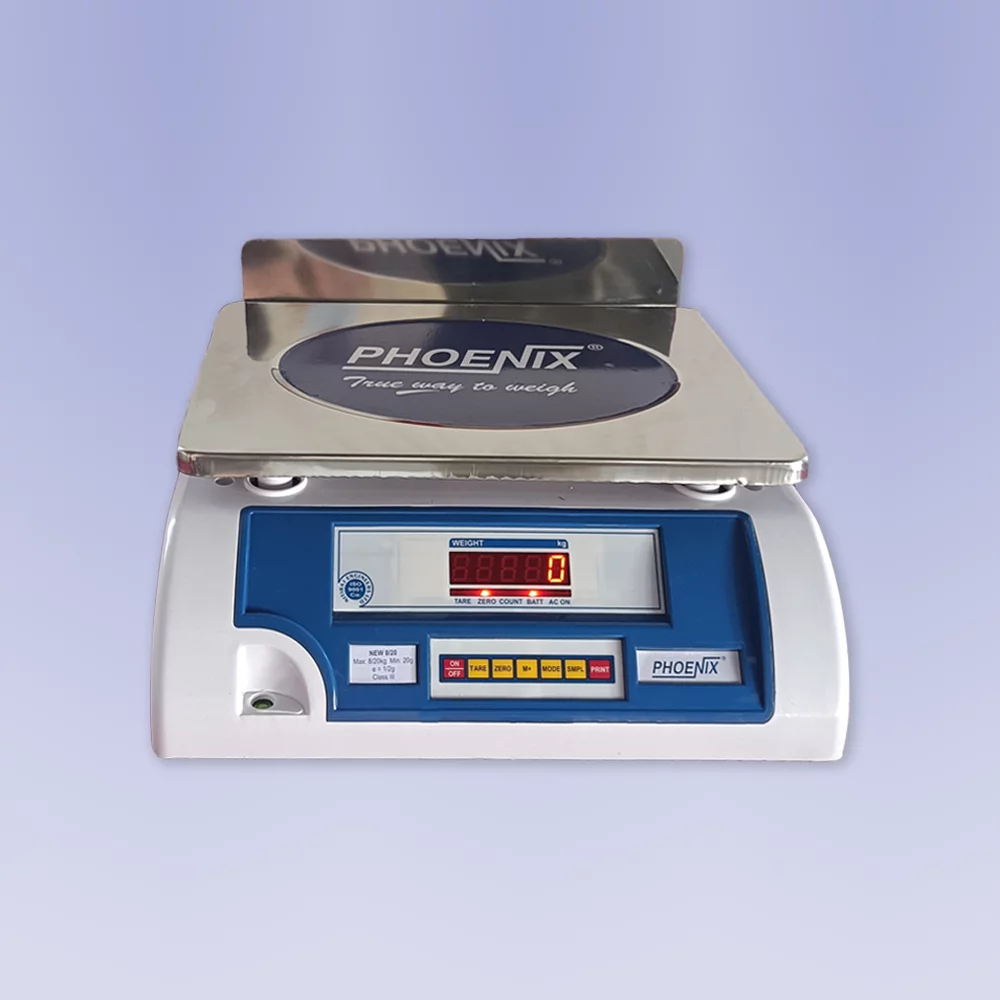

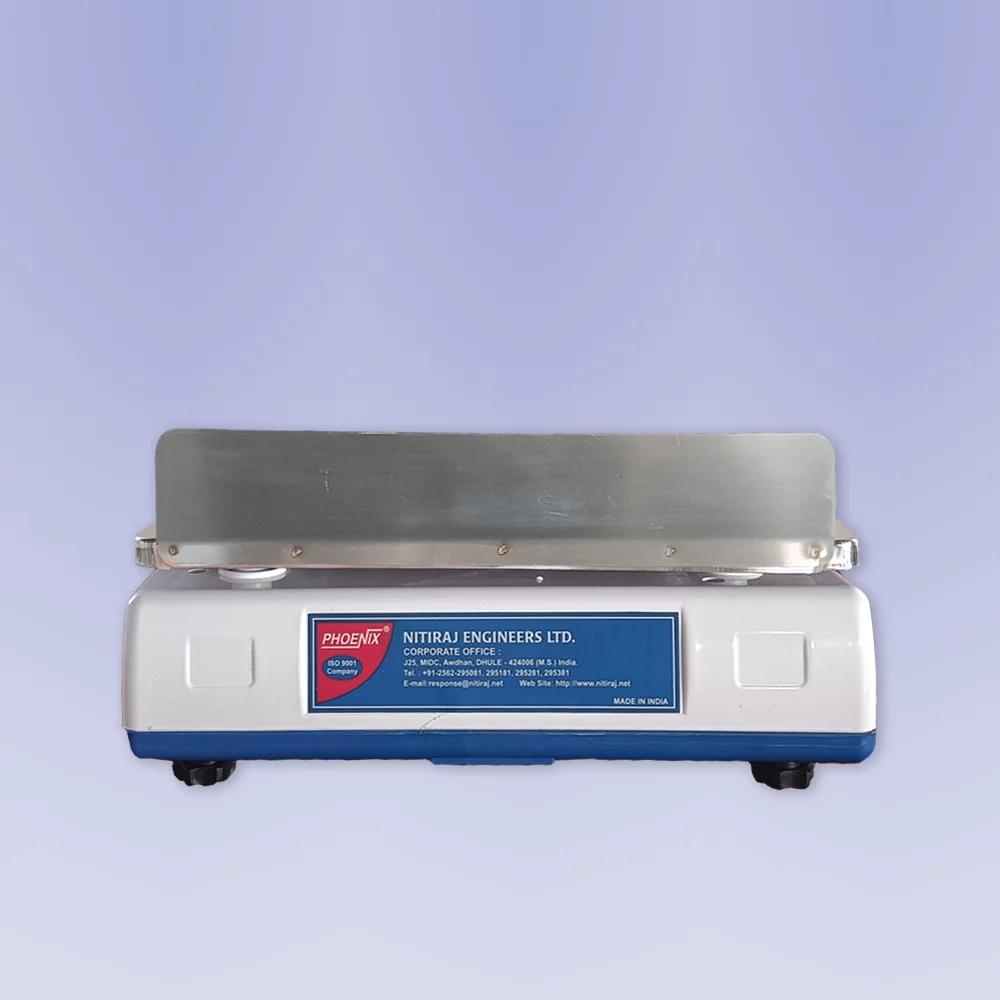

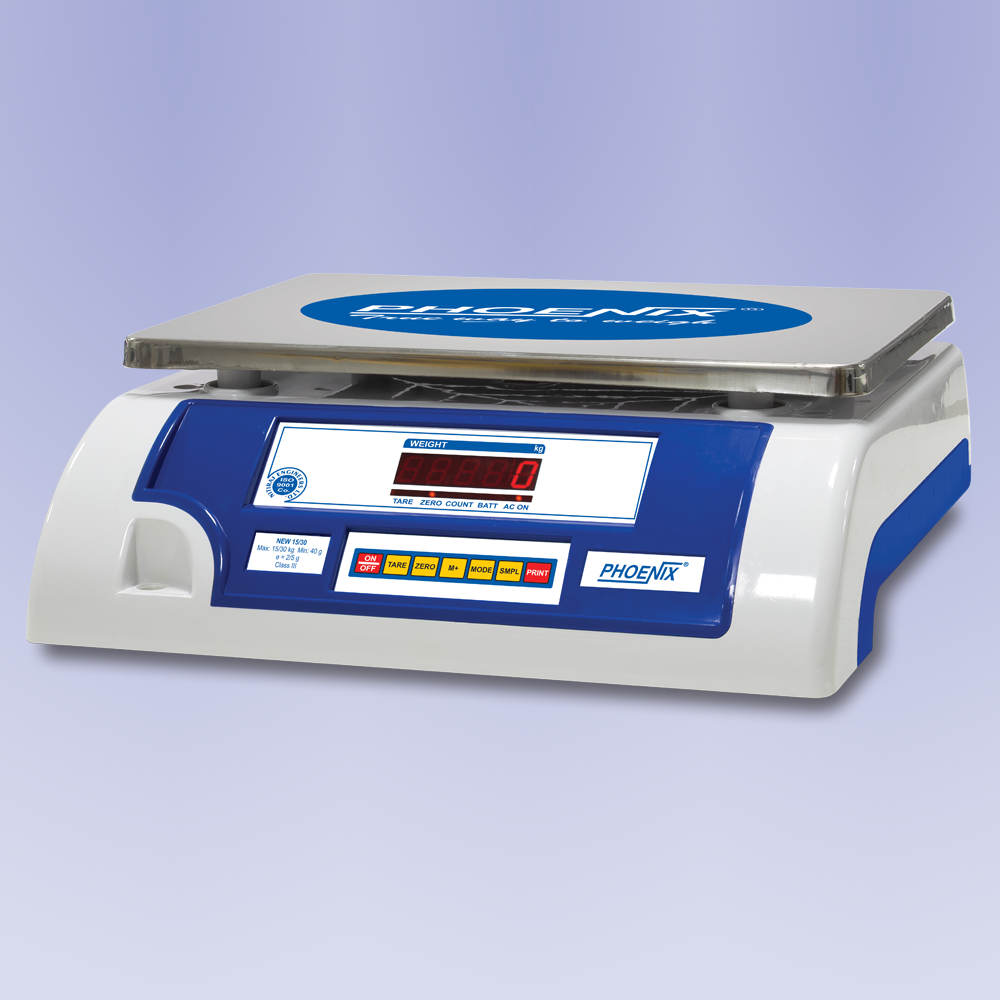

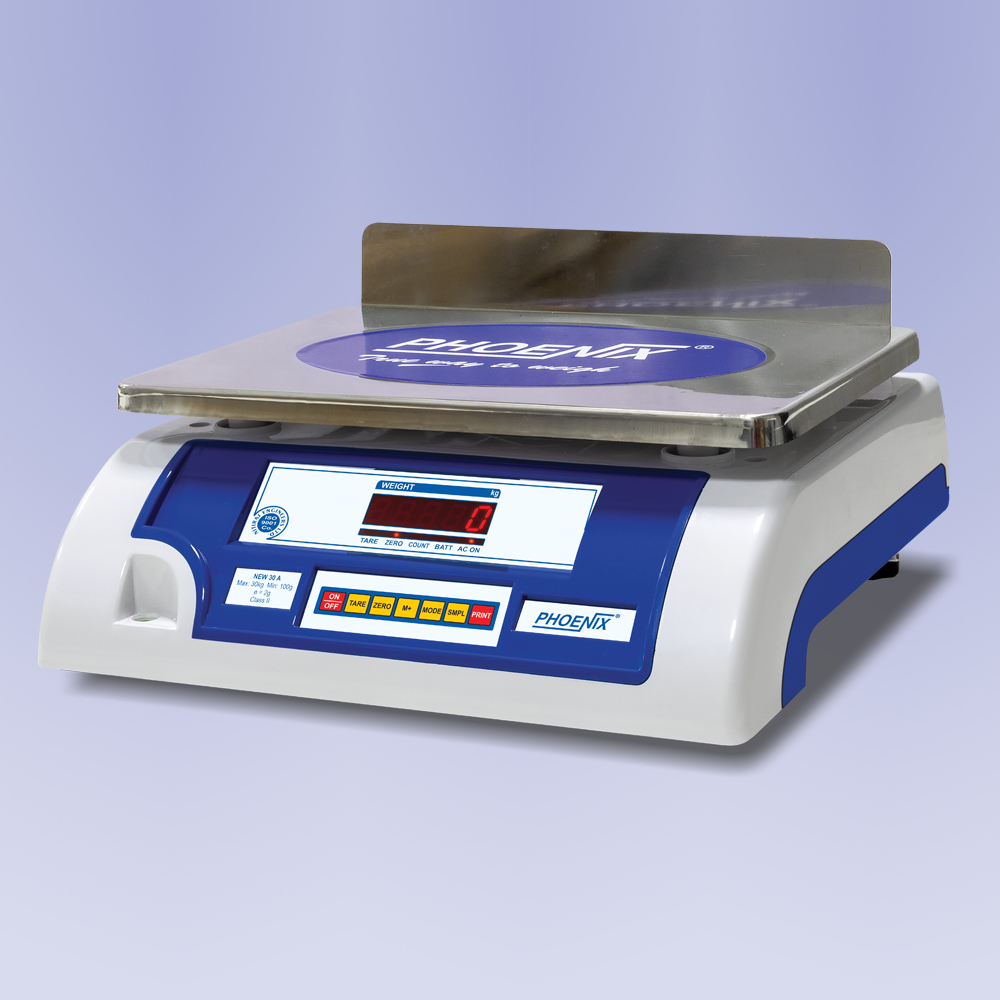

Tabletop Weighing Scale
NEW Series
Salient Features
- Loadcell based electronic weighing scale.
- Accurate and quick weighing.
- Big platter size and LED display.
- Indigenously developed, designed and manufactured in India.
| Models | Capacity | Accuracy | Platter Size |
|---|---|---|---|
| NEW – 3 A | 3 kg | 0.2 g | 350 X 246 mm |
| NEW – 6 A | 6 kg | 0.5 g | 350 X 246 mm |
| NEW – 15 A | 15 kg | 1.0 g | 350 X 246 mm |
| NEW – 30 A | 30 kg | 2.0 g | 350 X 246 mm |
*Model with lower/better resolution is also available.
*Multi-Interval instruments (Dual Accuracy Scales) are also available.
Specifications
Accessories
Applications
Videos
Specifications
| 1 | Weighing technology | Loadcell |
| 2 | Display | Red bright LED display. Adjustable display intensity for longer battery back-up. |
| 3 | Keyboard | Feather-touch keyboard with audible indication during entry. |
| 4 | Indications | A.C. On, Nett/Gross weight, Zero, Battery, Battery low & Count mode. |
| 5 | Modes of operation | Weight, Counting. |
| 6 | Memory accumulation feature | Yes. |
| 7 | Hardware | Sturdy ABS body with SS platter. |
| 8 | ADC | 24 bit Σ- Δ ADC (High resolution). |
| 9 | Power requirement | AC supply : 230V +10%, -20%, 50 Hz ,±2% |
| 10 | Dimensions (mm) | 343 (L) x 358 (w) x 102 (H)[ without tray], Tol: ± 10mm |
Accessories
- 3.7 V 2200 mAH rechargeable Li-Ion battery.
- Bluetooth feature with Android app.

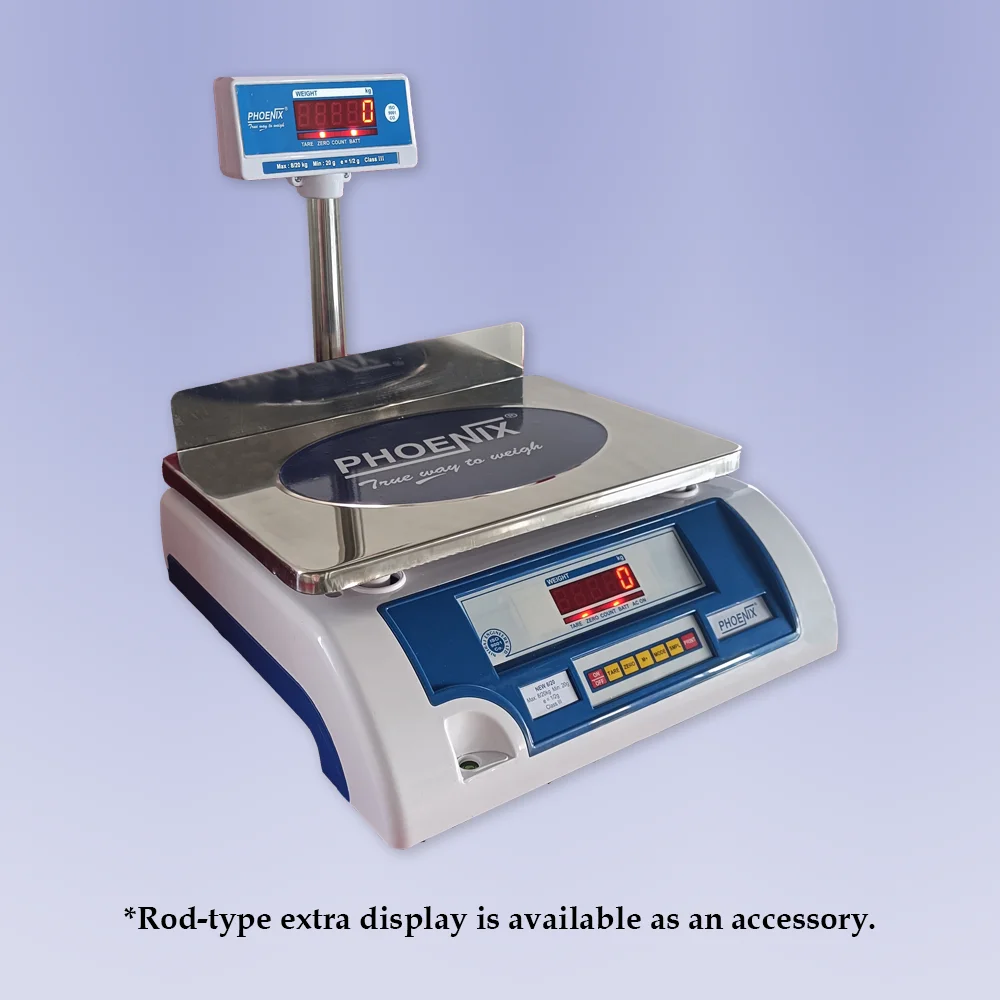

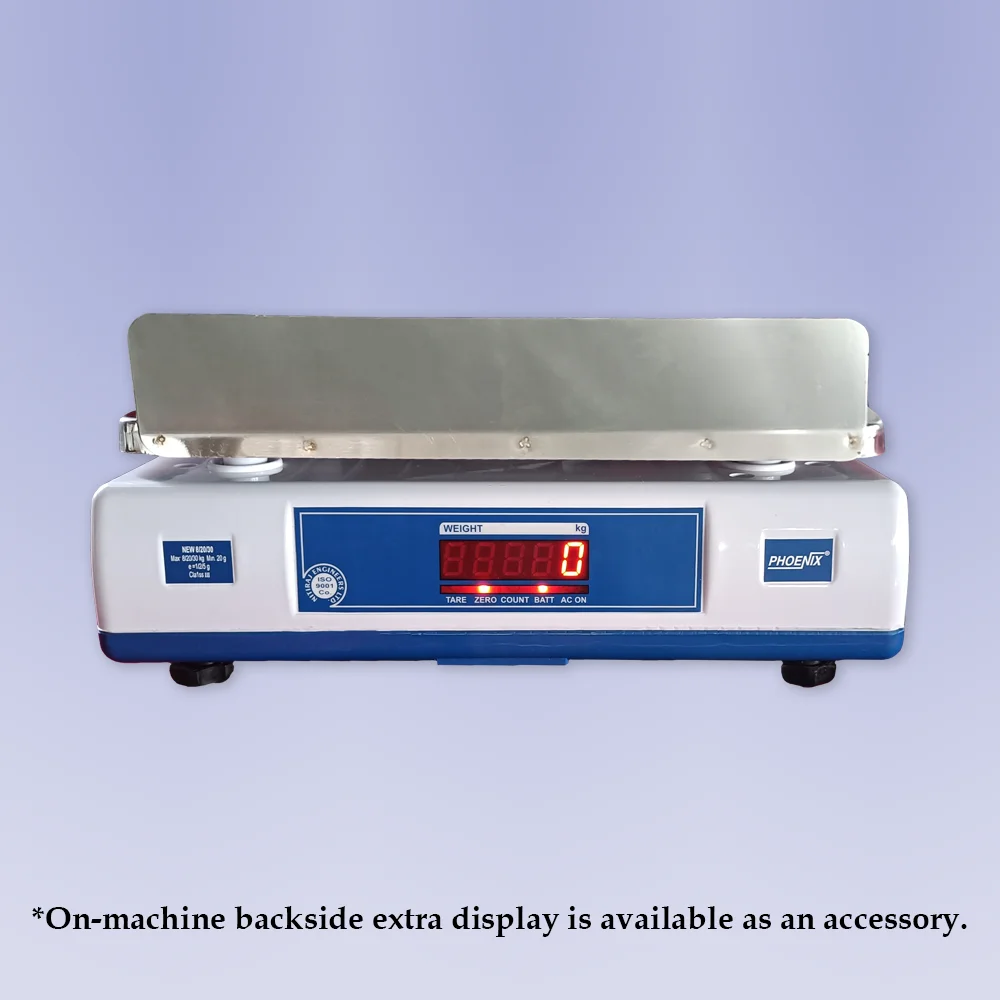

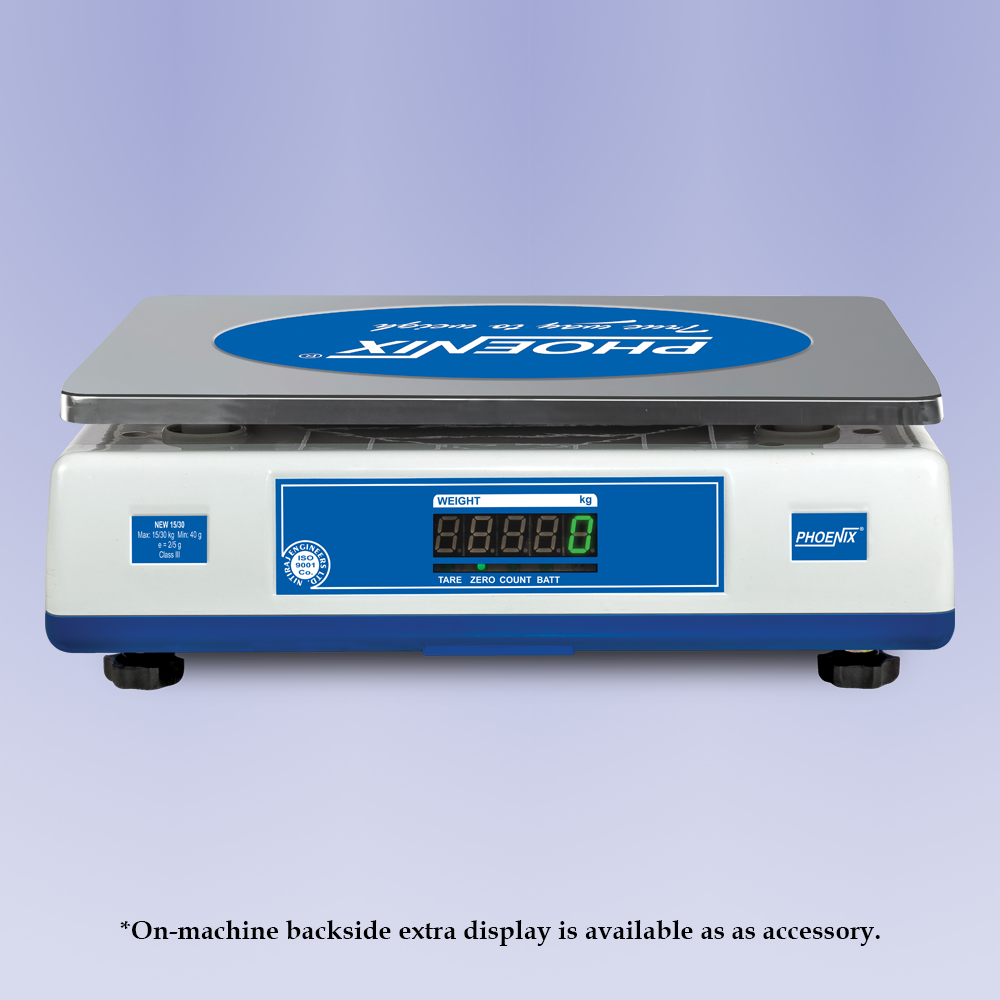

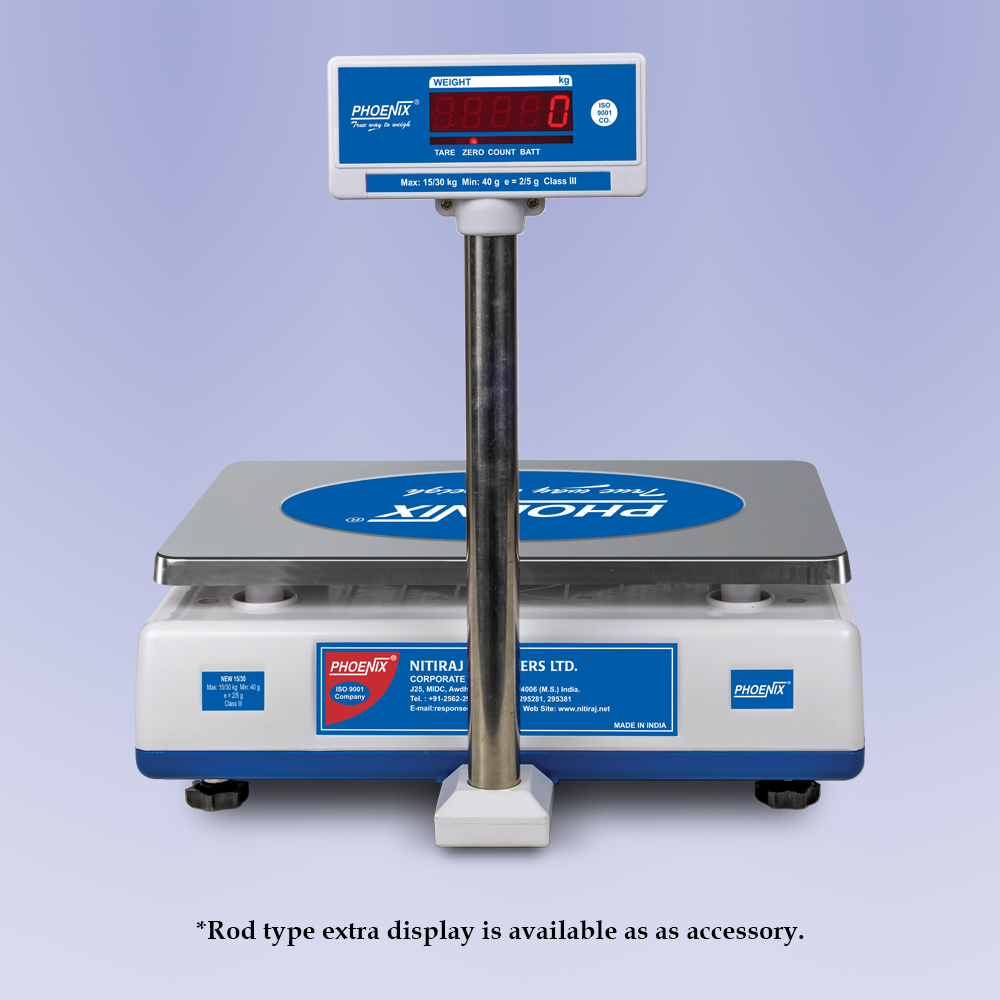

- Extra display (at the backside of the scale or rod type).
- Wireless RF display.
- Computer / Printer interface (RS – 232 C).
- Thermal printer (with adaptor).
- USB host port (to transfer data on Pen Drive).
- USB port (to connect with computer).
- Real-Time Clock.

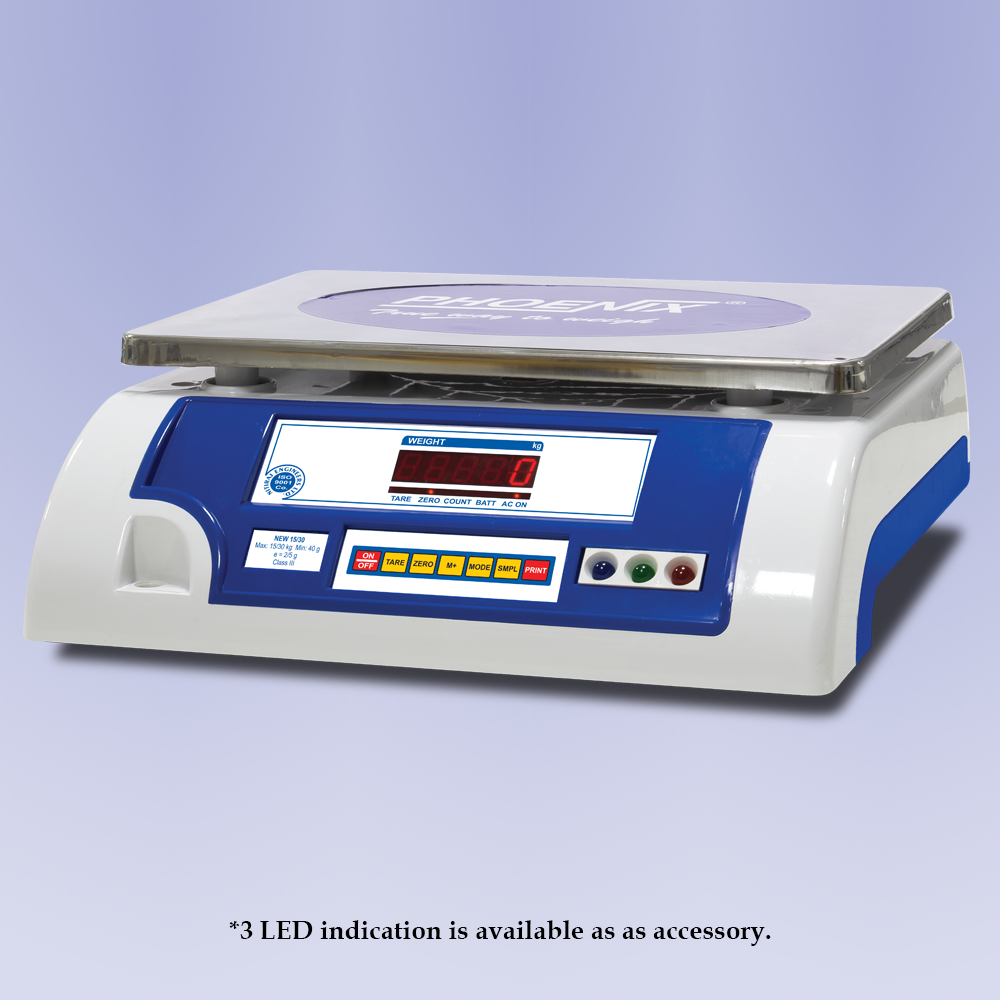

- 3 Big LED Indications (for check weighing).
Applications
- Shops
- Courier weighing
- Kirana stores
- Industries
