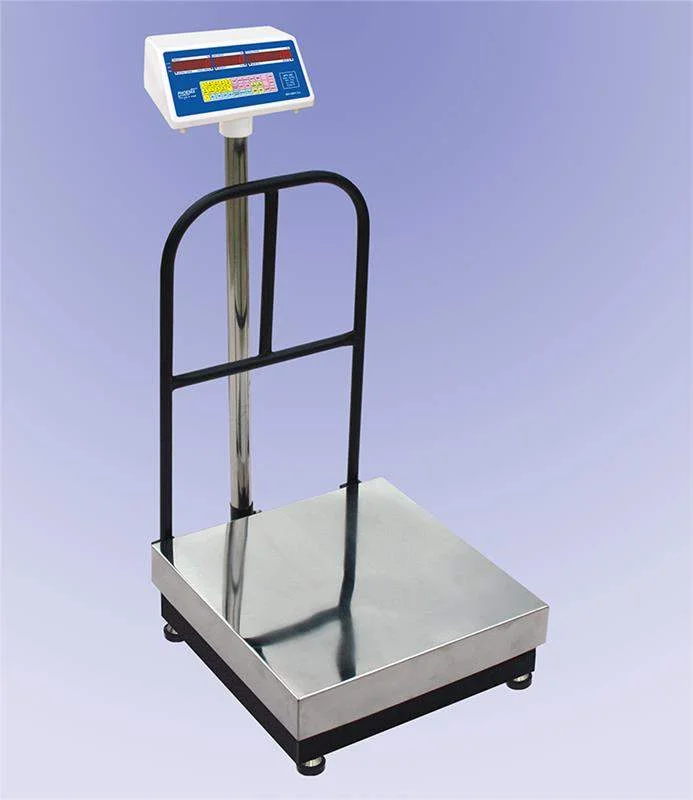

Price Computing and Bill Printing Weighing Scale

NEP (PC-N) Series

Loadcell based electronic weighing scale.
You can store data of 500 items in the machine, which includes item name, item code, unit price, expiry date, and unit (wt/qty). The machine automatically calculates total amount based on these inputs.
Features like bill printing, barcode printing, transferring data to computer, accumulated commodity-wise record printing, are offered.
18-digit red bright LED display and 36-key alphanumeric keyboard for easy UI.
Compatible with HDPOS Smart software.
Indigenously developed, designed, and manufactured in India.

Models	Capacity	Accuracy	Platter Size
NEP-30 A PC N	30 kg	2.0 g	320 X 320 mm
NEP-60 A PC N	60 kg	5.0 g	400 X 400 mm
NEP-150 A PC N	150 kg	10.0 g	450 X 450 mm
NEP-150 A PC N	150 kg	10.0 g	600 X 450 mm
NEP-150 A PC N	150 kg	10.0 g	600 X 600 mm
NEP-300 A PC N	300 kg	20.0 g	600 X 600 mm
NEP-300 A PC N	300 kg	20.0 g	750 X 750 mm
NEP-600 A PC N	600 kg	50.0 g	600 X 600 mm
NEP-600 A PC N	600 kg	50.0 g	750 X 750 mm
NEP-600 A PC N	600 kg	50.0 g	900 X 900 mm

*Multi-Interval instruments (Dual Accuracy Scales) are also available.

Specifications

Accessories

Applications

Videos

Specifications

Accessories

Applications

Videos

1	Weighing technology	Loadcell
2	Display	18 digit red bright LED display.
3	Keyboard	36-key Alphanumeric feather-touch keyboard with audible indication during entry.
4	Memory	Data of 500 items which includes machine, item name, item code, unit price, expiry date and unit (wt/qty), can be stored in the machine. This data can be entered using the machine’s keyboard or can be downloaded from the computer.
5	Modes of printing	1. Print the bill directly from weighing scale. 2. Print Barcode of individual Item (Barcode will consist of Item No. & Weight). 3. Transfers the weight data constantly to the computer.
6	Advanced features	Computer/Printer Interface, USB for Computer Interface, Real-Time Clock are inbuilt.
7	Special features	1. Prepacked items can be added in the bill. 2. Name and address of the shop owner can be entered using Alphanumeric keyboard or can be downloaded from the computer and the same can be printed on the bill. 3. Type of printer can be selected for Bill Printing Mode. 4. Accumulated commodity wise record can be printed. 5. ‘HOLD’ function for locking the display of weight. 6. Compatible with HDPOS Smart software.
8	Indications	A.C. On, Nett/Gross weight, Zero, Battery, Battery low.
9	Hardware	Rugged construction with stainless steel platform. Sturdy grill provided to support heavy loads.
10	ADC	24 bit Σ – Δ ADC (High resolution).
11	Power requirement	AC supply : 230V +10%, -20%, 50 Hz ,±2%
12	Dimensions	As per Platter size mentioned in above table.
