Piece Counting Weighing Scale
NEC Series
Previous
Next

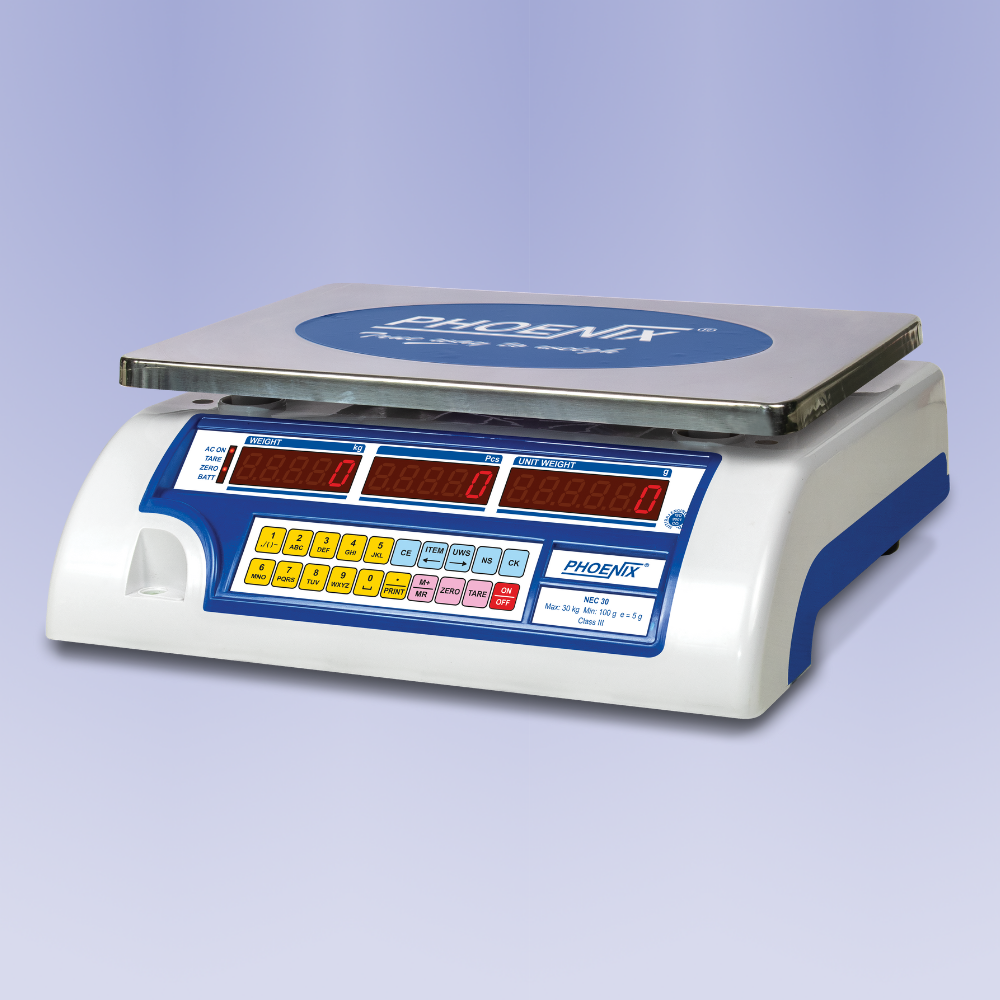

Piece Counting Weighing Scale
NEC Series
Salient Features
- Loadcell based electronic weighing scale.
- You can store items and the machine automatically counts the number of pieces of the same item placed on it, based on weight.
- Displays weight, unit, unit weight & count.
- 16-digit red bright LED display and 20-key keyboard for easy UI.
- Indigenously developed, designed and manufactured in India.
| Models | Capacity | Accuracy | Platter Size |
|---|---|---|---|
| NEC – 3 | 3 kg | 0.2 g | 350 X 246 mm |
| NEC – 6 | 6 kg | 0.5 g | 350 X 246 mm |
| NEC – 15 | 15 kg | 2.0 g | 350 X 246 mm |
| NEC – 30 | 30 kg | 5.0 g | 350 X 246 mm |
Specifications
Accessories
Applications
Videos
Specifications
| 1 | Weighing technology | Loadcell |
| 2 | Display | 16 digit red bright LED display. |
| 3 | Keyboard | 20-key feather-touch keyboard with audible indication during entry. |
| 4 | Modes of operation | Counting function |
| 5 | Special features | Displays Weight, Unit, Unit Weight & Count. |
| 6 | Memory accumulation | Yes |
| 7 | Hardware | Sturdy ABS body with SS platter. |
| 8 | ADC | 24 bit Σ – Δ ADC (High resolution). |
| 9 | Power requirement | AC supply : 230V +10%, -20%, 50 Hz ,±2% |
| 10 | Dimensions (mm) | 343 (L) x 358 (w) x 102 (H)[without tray], Tol: ±10 mm |
Accessories
- 3.7 V 2200 mAH rechargeable Li-Ion battery.

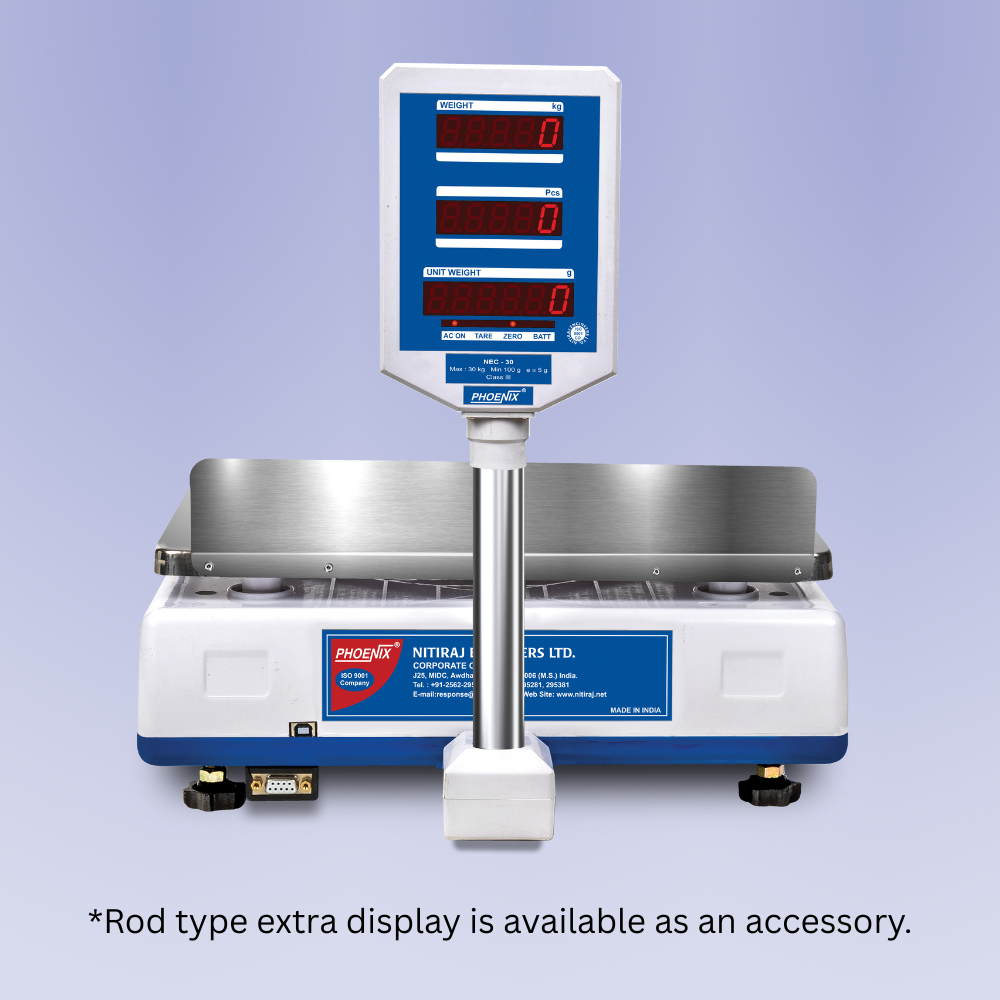

- Rod type extra display.
- Green bright LED display.
- Computer / Printer interface (RS- 232 C).
- Real-time clock.
- USB for Computer Interface.
- Thermal Printer (with adaptor).
Applications
- Hardware stores
- Inventory management
- Warehousing and Distribution
- Pharmaceuticals
