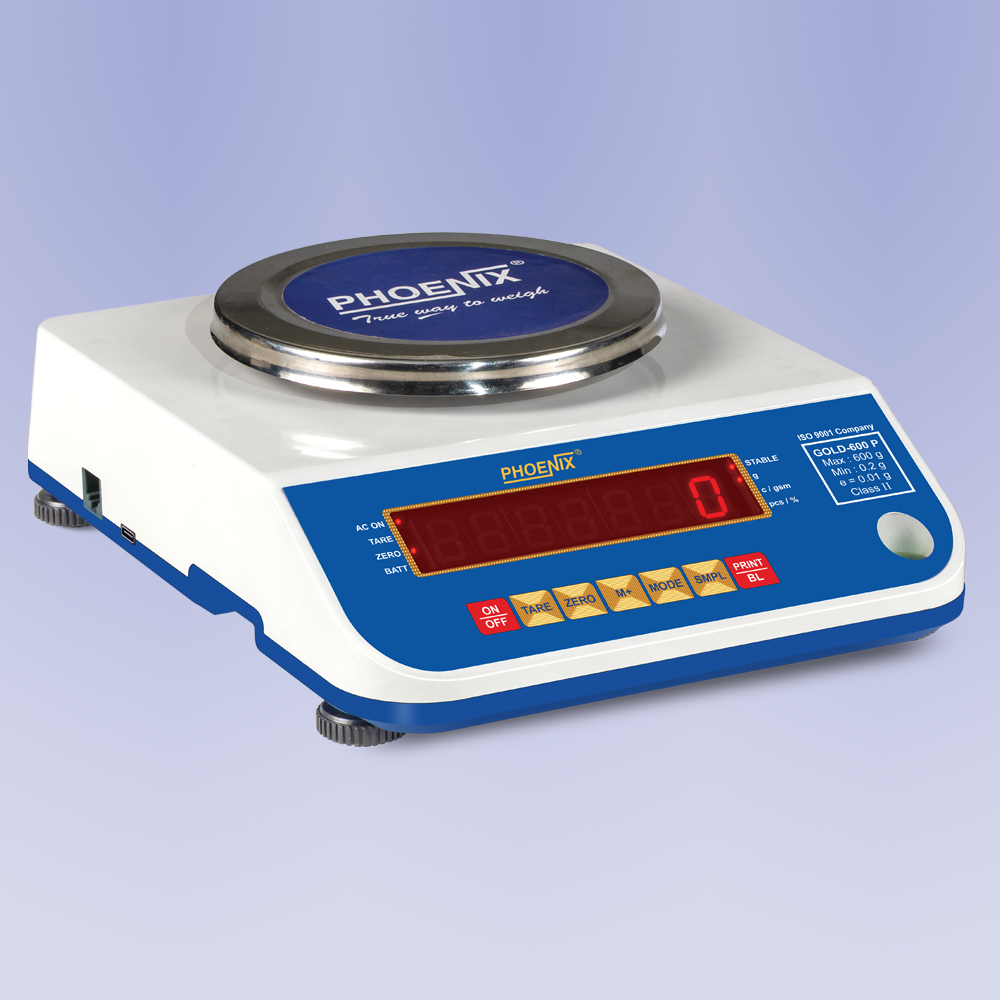

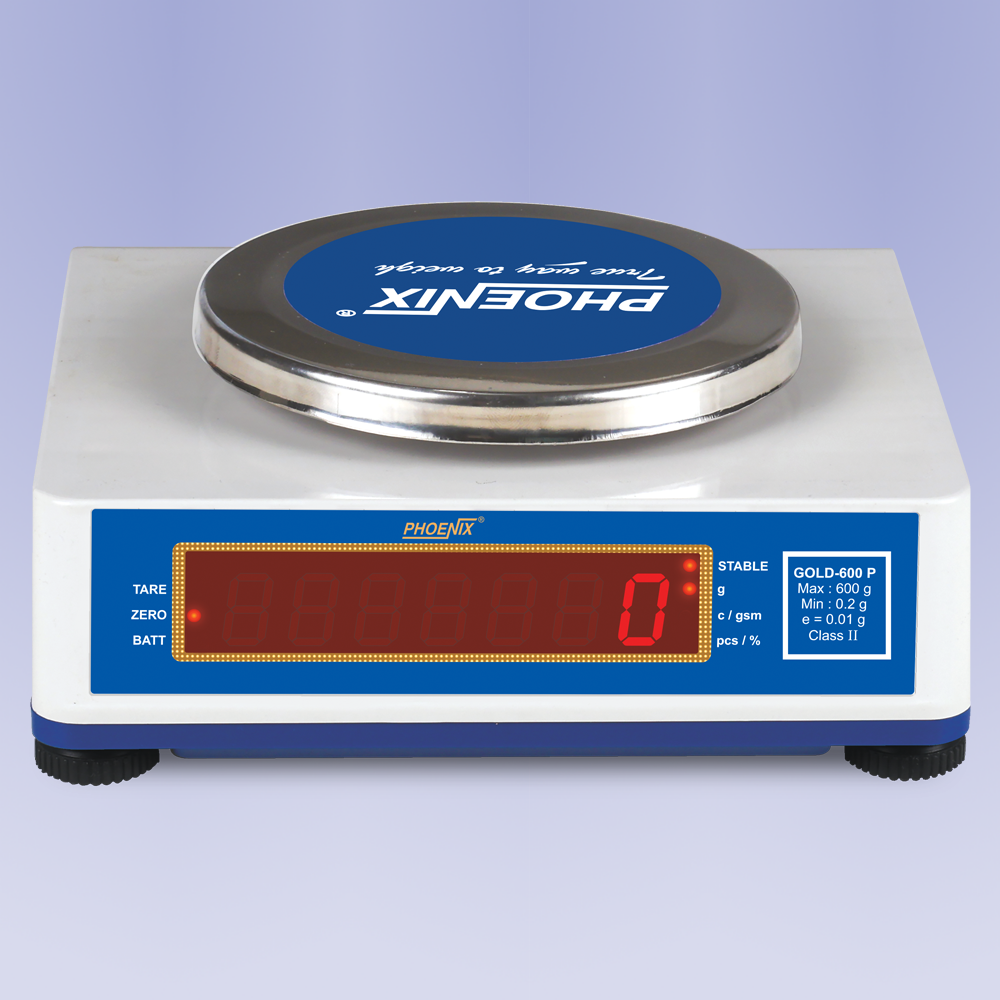

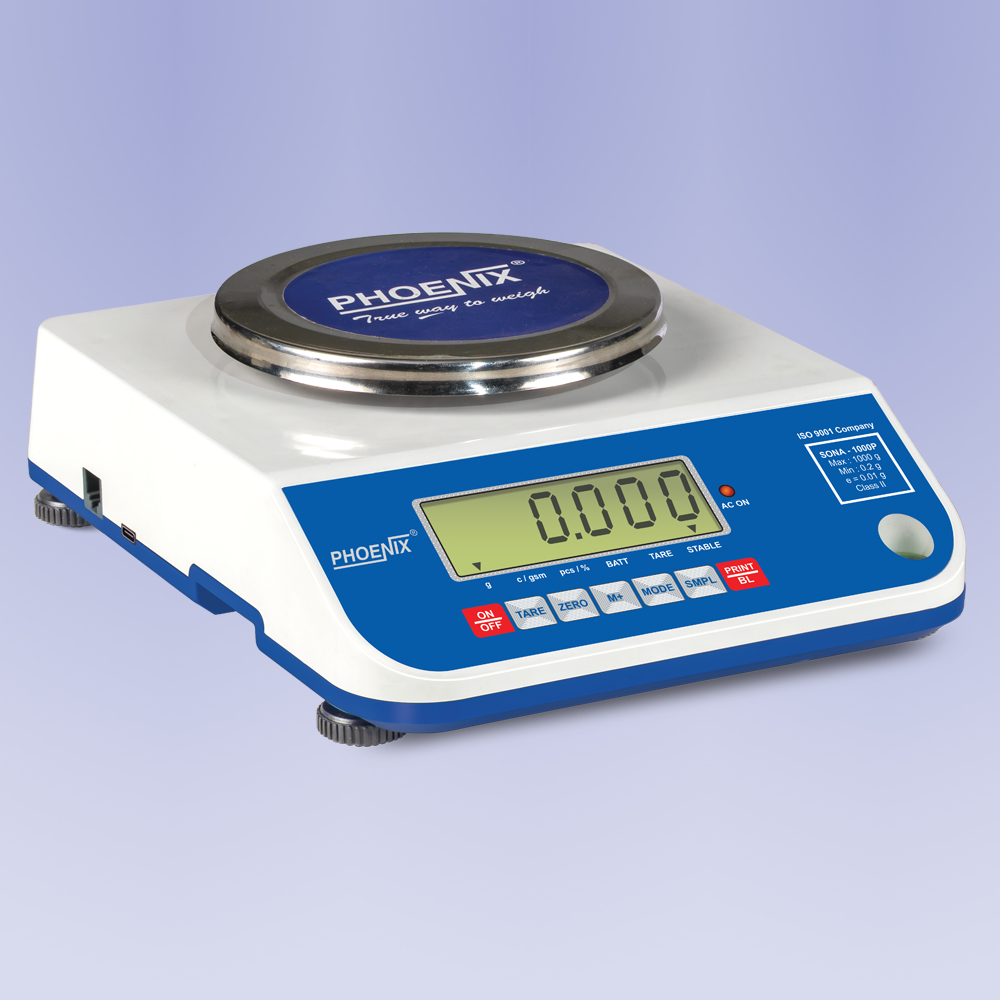

Jewellery Weighing Scale
Gold Series
Salient Features
- Loadcell based electronic weighing scale.
- Accurate and quick weighing.
- LED display.
- Indigenously developed, designed and manufactured in India.
| Models | Capacity | Accuracy | Platter Size |
|---|---|---|---|
| GOLD – 120 P | 120 g | 0.01 g | 125 mm dia |
| GOLD – 300 P | 300 g | 0.01 g | 125 mm dia |
| GOLD – 300 Q | 300 g | 0.005 g | 125 mm dia |
| GOLD – 600 P | 600 g | 0.01 g | 125 mm dia |
| GOLD – 1000 P | 1000 g | 0.01 g | 125 mm dia |
*Model with lower/better resolution are also available.
Specifications
Accessories
Applications
Videos
Specifications
| 1 | Weighing technology | Loadcell |
| 2 | Display | Red bright LED display. Adjustable display intensity for longer battery back-up. |
| 3 | Keyboard | Feather-touch keyboard with audible indication during entry. |
| 4 | Modes of operation | Weight, Carat, Counting, Percentage and GSM. |
| 5 | Memory accumulation feature | Yes. |
| 6 | Hardware | Sturdy ABS body with SS platter. |
| 7 | ADC | 24 bit Σ – Δ ADC (High resolution). |
| 8 | More features | Battery voltage display on screen. |
| 9 | Power requirement | AC Supply : 230V +10%, -20%, 50 Hz ,±2% |
| 10 | Dimensions (mm) | 235 ( L) x 206 (w) x 82 (H) , Tol : ± 10 mm |
Accessories
- 6 V, 4 AH rechargeable SMF battery.
- Extra Display (At the backside of the scale or detachable at 3 meters).
- Wireless RF extra Display.
- Green bright LED display.
- Computer / Printer interface (RS-232 C).
- USB Port (for Computer Interface).
- Thermal Printer (with adaptor).
- Real-Time Clock.

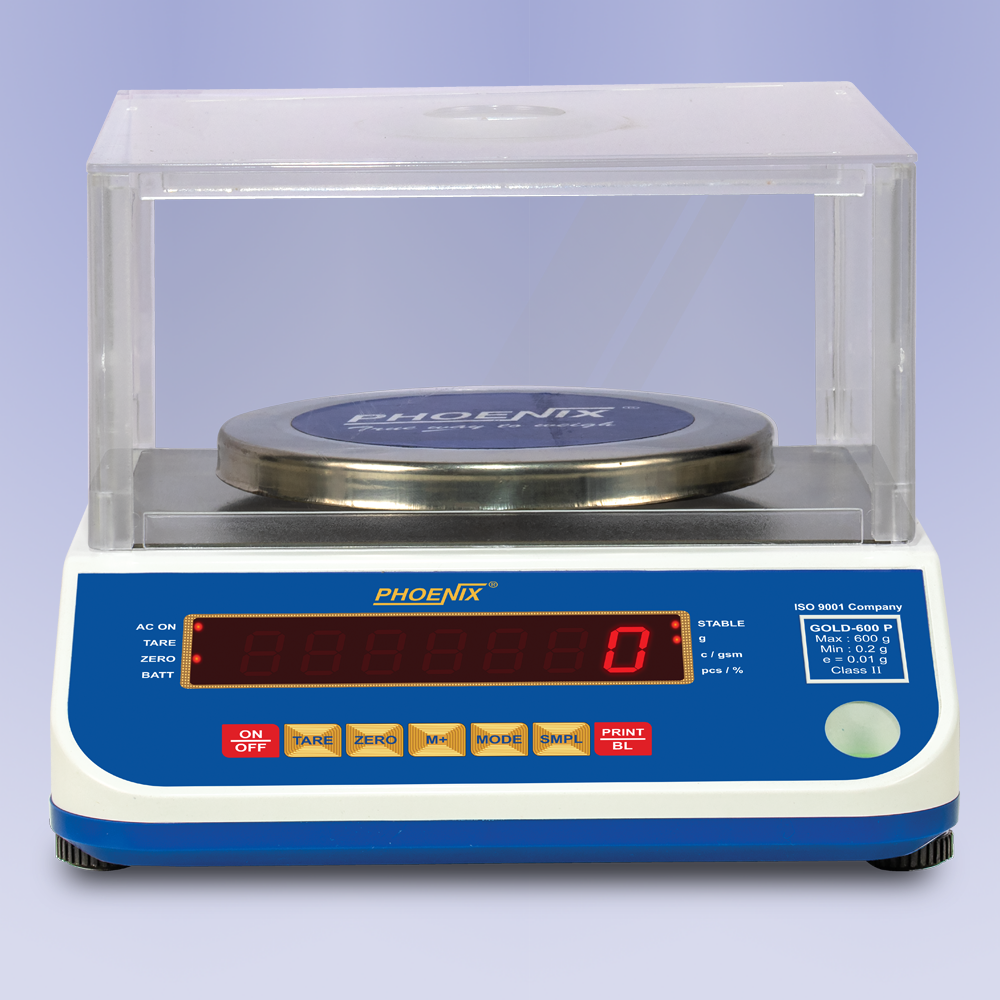

- Wind Shield.
Applications
- Goldsmiths/Jewelers
- Paper industry
Videos
 |
 |
 |
