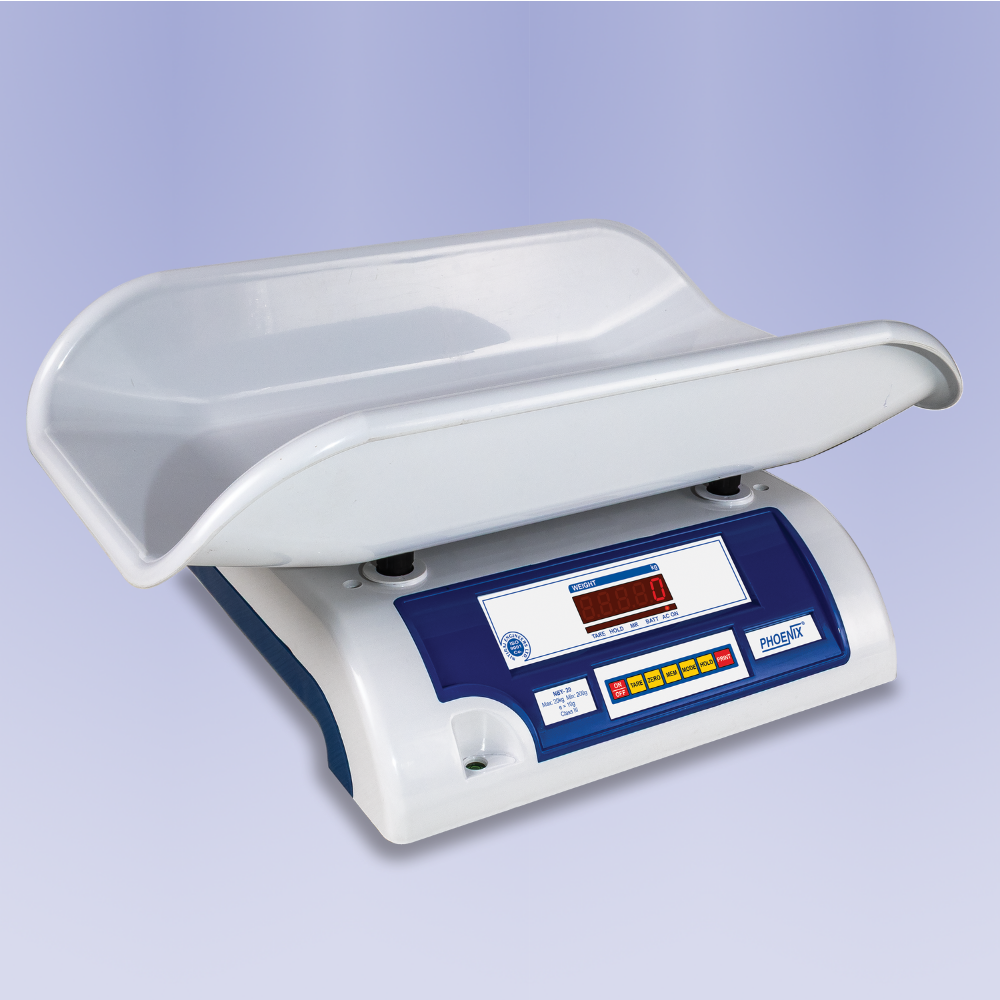

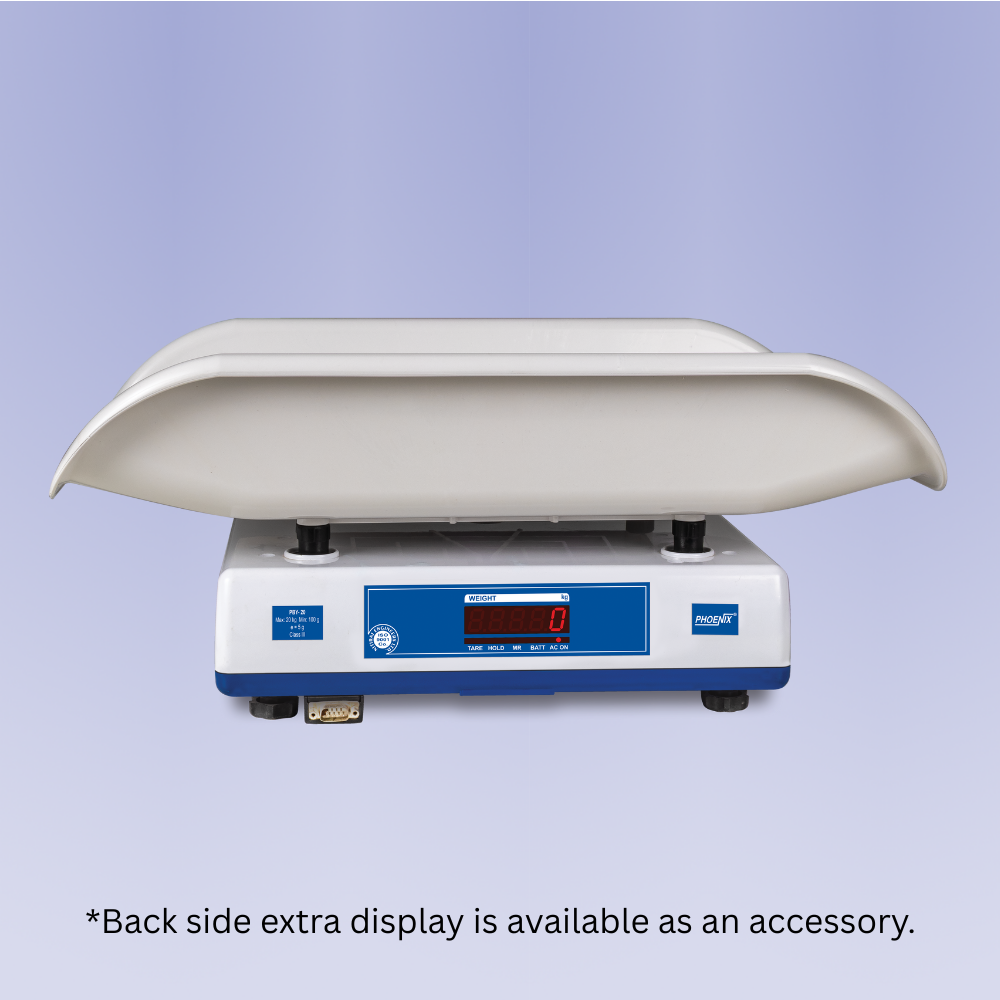

Baby Weighing Scale
NBY Series
Salient Features
- Loadcell based electronic weighing scale for infants.
- Baby bowl made up of ABS is supplied with the scale.
- LED display.
- Retains the last weight in memory.
- Indigenously developed, designed, and manufactured in India.
| Models | Capacity | Accuracy | Bowl Size |
|---|---|---|---|
| NBY-10 | 10 kg | 2.0 g | 550 X 300 mm |
| NBY-20 | 20 kg | 10.0 g | 550 X 300 mm |
| NBY-30 | 30 kg | 10.0 g | 550 X 300 mm |
Specifications
Accessories
Applications
Videos
Specifications
| 1 | Weighing technology | Loadcell |
| 2 | Display | Red bright LED display. Adjustable display intensity for longer battery back-up. |
| 3 | Keyboard | Feather-touch keyboard with audible indication during entry. |
| 4 | Indications | A.C. On, Nett/Gross weight, Zero, Battery, Battery low & kg/lb mode. |
| 5 | Modes of operation | Weight, lb. |
| 6 | Memory accumulation feature | Yes, retains the last weight in memory. |
| 7 | Hardware | Sturdy ABS body. Comfortable, spacious and sturdy baby bowl made up of ABS, designed as per Weights & Measures norms and IMA guidelines. |
| 8 | Special features | Special software provides accurate weight in-spite of variations due to child’s movements. ‘HOLD’ function for locking the display of weight. |
| 9 | ADC | 24 bit Σ – Δ ADC (High resolution). |
| 10 | Power requirement | AC Supply : 230V +10%, -20%, 50 Hz ,±2%. |
| 11 | Dimension (mm) | 1.) Machine : 343 (L) x 358 (W) x 102(H),Tol : ± 10mm. 2.) Baby Bowl : 550 (L) x 300 (W) x 110 (H),Tol : ± 10mm. |
Accessories
Applications
- Hospitals
- Aanganwadis
- Child care centres
- Paediatricians, Physicians
